Protect your mobile or manufactured home from earthquake displacement with HCD-certified ERBS bracing systems. Apply for $3,000 CRMP EMR grants.
Table of Contents
- Why Mobile Homes Suffer Severe Earthquake Damage
- The California Earthquake Brace + Bolt for Mobilehomes (EMR) Program
- What is an HCD-Certified Earthquake-Resistant Bracing System (ERBS)?
- Undercarriage Support Systems Comparison
- Why Releveling is Essential Before Seismic Bracing
- Frequently Asked Questions (FAQ)
Manufactured and mobile homes provide vital, affordable housing for hundreds of thousands of residents across Southern California. However, from a structural engineering standpoint, manufactured homes face unique earthquake risks compared to site-built houses. Unlike traditional homes anchored directly to continuous concrete footings, mobile homes rest on an undercarriage grid of steel I-beams supported by steel screw jacks, concrete masonry unit (CMU) blocks, or dry-stacked pier pads resting on the soil.
When seismic ground waves hit, these unanchored support piers can shift, tip over, or sink. As a result, the entire mobile home can drop 2 to 3 feet to the ground, severing natural gas and water lines, puncturing the floor structure, twisting the steel chassis, and rendering the home a total structural loss.
At PiersPro (CA GC License #1110475), we provide specialized mobile home leveling and seismic bracing services. In this guide, we explain how to protect your manufactured home using state-certified Earthquake-Resistant Bracing Systems (ERBS) and how you can access up to $3,000 in state grant funding through the California Residential Mitigation Program (CRMP) Earthquake Brace + Bolt for Mobilehomes (EMR) initiative.
---
Why Mobile Homes Suffer Severe Earthquake Damage
Traditional site-built homes distribute seismic energy through a continuous perimeter foundation tied into the ground. Manufactured homes, by contrast, rely on isolated undercarriage supports:
- Unanchored Pier Blocks: Most older mobile homes sit loosely on steel jack stands or concrete blocks without mechanical tie-downs or diagonal braces. Horizontal ground movement easily displaces these narrow contact points.
- Chassis Twisting & Buckling: When isolated piers topple, the weight of the structure falls unevenly onto the remaining supports, permanently twisting the main longitudinal steel I-beams.
- Utility Ruptures and Fire Risk: When a mobile home falls off its piers, rigid natural gas piping fractures instantly, creating an immediate fire and explosion hazard, while severed water lines cause extensive flooding under the home.
- Separation of Double-Wide Marriage Lines: Multi-section manufactured homes can experience separation along the central ridge and floor marriage joints during violent shaking.
---
The California Earthquake Brace + Bolt for Mobilehomes (EMR) Program
To protect manufactured home communities across the state, the California Residential Mitigation Program (CRMP) established the Earthquake Brace + Bolt for Mobilehomes (EMR) program, funded in coordination with the California Earthquake Authority (CEA) and the California Governor's Office of Emergency Services (Cal OES).
EMR Program Key Highlights:
* Grant Funding: Qualifying mobile home owners receive up to $3,000 in grant funding toward the purchase and professional installation of an approved Earthquake-Resistant Bracing System.
* Eligible Structures: Manufactured and mobile homes located on private residential property or within licensed mobile home parks throughout California.
* Certified Systems: Work must utilize an Earthquake-Resistant Bracing System (ERBS) certified and approved by the California Department of Housing and Community Development (HCD) under Title 25 of the California Code of Regulations.
---
What is an HCD-Certified Earthquake-Resistant Bracing System (ERBS)?

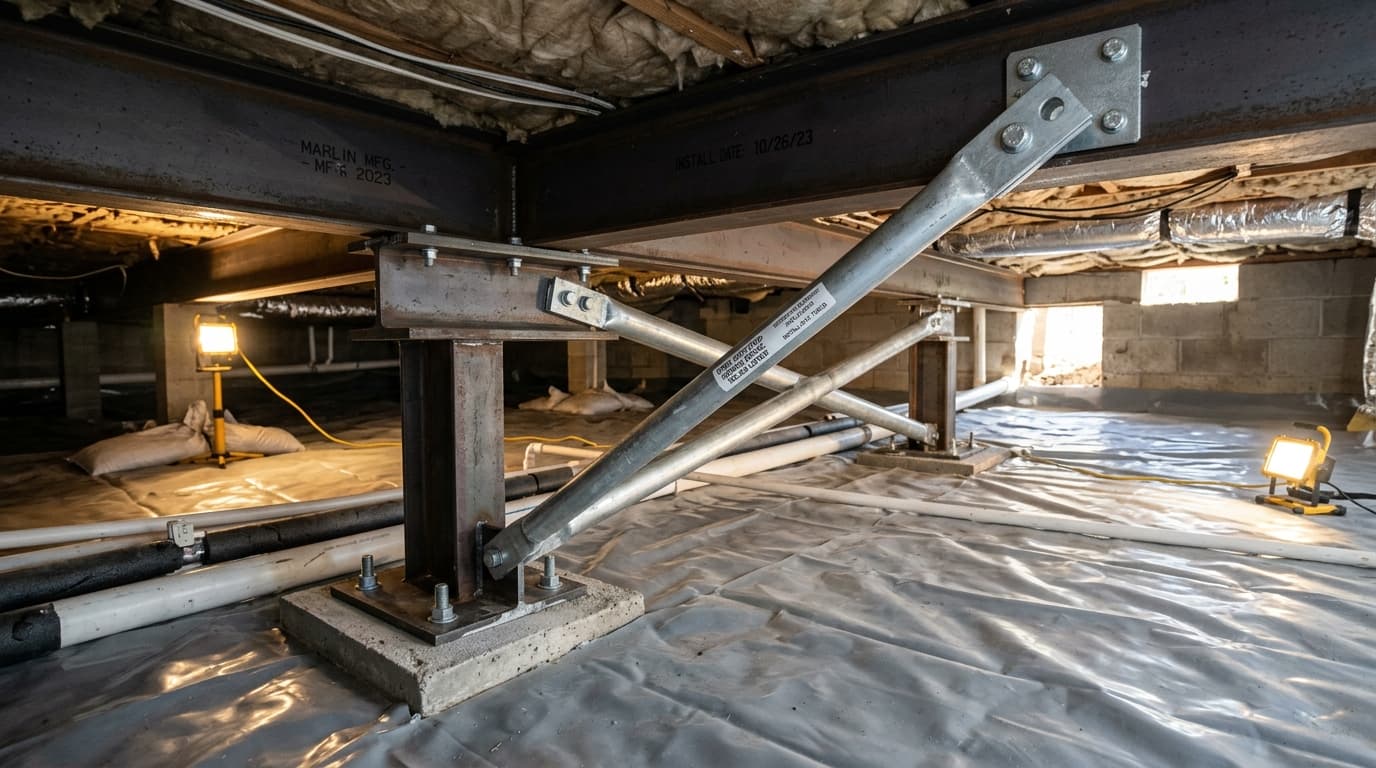

An ERBS is an engineered steel structural network installed beneath your manufactured home, specifically designed to withstand lateral earthquake forces and keep the home supported during a temblor.
Under California HCD regulations, a certified ERBS consists of:
* Engineered Diagonal Steel Struts: High-strength steel cross-braces connected between the home's main longitudinal I-beams and heavy-duty steel ground base plates.
* Longitudinal and Transverse Seismic Bracing: Bracing installed in both directions (parallel and perpendicular to the chassis) to prevent lateral sway and forward-backward shift.
* Catch Mechanisms & Secondary Support: Heavy-gauge steel catch pads that prevent the home from dropping more than a fraction of an inch if individual leveling jacks lose contact.
* Reinforced Soil Anchor Plates: Wide-footprint steel base pads that distribute dynamic loads into the ground, preventing piers from punching into soft soil.
---
Undercarriage Support Systems Comparison
| Support System | Lateral Earthquake Resistance | Vertical Drop Prevention | HCD Title 25 Certified | EMR Grant Eligible | Relative Cost |
|---|---|---|---|---|---|
| Standard Steel Jacks / CMU Blocks | None (Piers easily topple) | None (Home drops 2–3 ft) | No | No | Lowest |
| Standard Tie-Down Straps (Wind Only) | Low to Moderate (Resists uplift, weak in shear) | Partial | Varies (Wind rated only) | No | Moderate |
| HCD-Certified ERBS System | High (Engineered diagonal shear struts) | Complete (Prevents chassis collapse) | Yes (HCD Standard Plan) | Yes (Up to $3,000 grant) | Moderate (Subsidized by EMR) |
| Permanent Engineered Foundation (SPA 185) | Maximum (Tied to concrete footing) | Complete | Yes (Converts to real property) | Specialized | High |
---
Mid-Content Call to Action
Do you own a mobile or manufactured home in Southern California?
Don't leave your home vulnerable to earthquake collapse. PiersPro provides complete mobile home level inspections, pier restoration, and HCD-compliant ERBS seismic retrofits.
Book a Mobile Home Inspection or call (213) 583-6669 to speak with our manufactured housing specialists.
---
Why Releveling is Essential Before Seismic Bracing
Installing an ERBS bracing system on an unlevel or settling mobile home is a critical mistake. If the steel chassis is sagging or out of plumb, installing rigid seismic hardware locks that twist into the structure permanently, causing interior doors to stick, drywall to crack, and roof seams to leak.
At PiersPro, we follow an integrated engineering protocol:
- Digital Laser Level Survey: We map floor elevations across all rooms and under the chassis using digital water levels and laser altimeters.
- Pier Adjustment & Jack Restoration: We lift and relevel sagging frame sections, replacing rusted steel jacks or cracked concrete pier pads.
- Chassis Alignment: We verify that the main I-beams are straight, plumb, and evenly supporting the structural loads.
- ERBS Installation: Once the home is perfectly level, we install and anchor the HCD-certified ERBS bracing system per manufacturer torque specifications.
- HCD / LEA Permitting & Final Sign-Off: We pull required permits through the California Department of Housing and Community Development (HCD) or the local enforcement agency (LEA) and obtain final inspection sign-off.
---
Frequently Asked Questions (FAQ)
Q1: Can an ERBS system be installed in a mobile home park?
A1: Yes. HCD-certified ERBS systems are fully permitted for installation in mobile home parks throughout California. They do not require digging deep concrete foundations, making them fully compliant with park regulations.
Q2: How long does it take to install an ERBS retrofit on a mobile home?
A2: For most single-wide and double-wide manufactured homes, the complete releveling and ERBS installation process is completed in just 1 to 2 working days.
Q3: Does an earthquake bracing system help with mobile home insurance?
A3: Yes. Many insurance carriers in California require an HCD-certified ERBS or tie-down system before issuing mobile home earthquake insurance, and some offer policy premium discounts once certified.
Q4: What is the difference between tie-downs and an ERBS system?
A4: Tie-downs are primarily designed to resist wind uplift (tornado/hurricane straps). An ERBS (Earthquake-Resistant Bracing System) is specifically engineered to resist horizontal seismic shear acceleration and prevent vertical drop during California temblors.
---
Ensure your manufactured home is secure, level, and protected against California's next seismic event. Contact PiersPro (CA GC License #1110475) to schedule your professional mobile home diagnostic.
Schedule a Mobile Home Evaluation or call us at (213) 583-6669 today.
